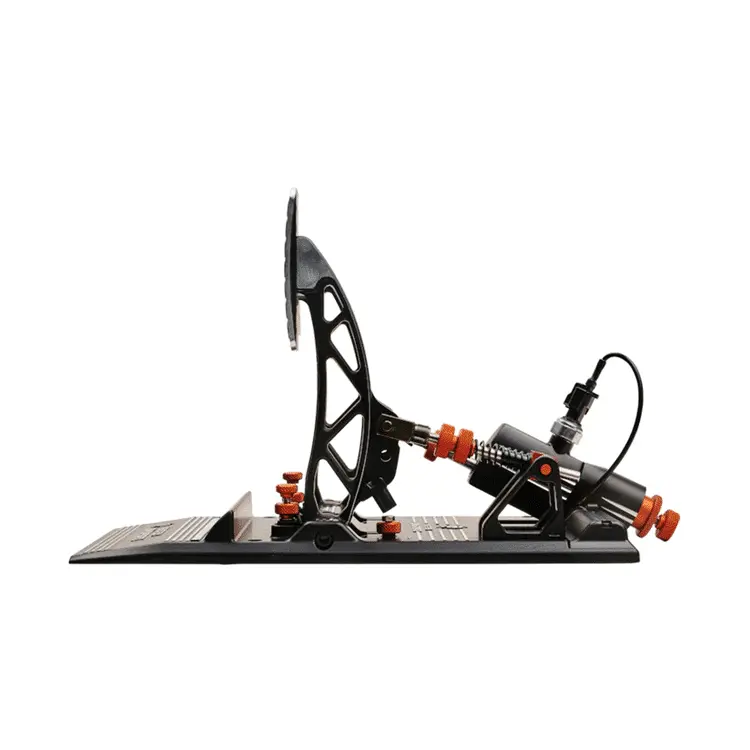

Asetek Invicta Pedals

Asetek Invicta Pedals are the pin­nacle of sim racing gear. The hydraulic sim racing pedals are designed with a natural racecar feel, durability and ease of use in mind. They are plug’n’play capable out of the box, and by using the Asetek SimSports RaceHub™ software, you will experience a plethora of advanced features for experienced sim racers.

The stunning forged aluminium pedal arm offers an easy play pedal arm, and the in-house designed brake cylinder provides your pedal arms with great flexibility.

T.H.O.R.P.™ (Twin Hydraulic Opposing Rapid Pistons) is Asetek SimSports’ hydraulic brake cylinder, giving the racer the ultimate experience of driving a real racecar. The entire set of pedals are, in every sense, “Made in Denmark” – Designed, engineered, and assembled in Denmark.

The brake cylinder features an automotive-grade pressure sensor, which makes it the closest you will come to a realistic brake experience in sim racing. The throttle brake paired with the right foot or pedal position will give you the ultimate racecar brake pedal.

Want to “just” shave off some tenths of your best lap times? The Invicta Sim Racing Pedals will help you do exactly that. Underappreciated by many, the pedal input provides half of the steering in a racecar.

Want to completely immerse yourself in a racing experience using a racing simulator that will provide everything but the smell of burning rubber? Invicta will be a crucial piece of your racing simulator as well.

Compatible with Invicta Throttle Footrest – a quick-to-mount accessory allowing you to rest your foot during long races.

GENERAL TECH & DIMENSIONS ABOUT ASETEK INVICTA PEDALS

Exquisite, radical, and minimalistic industrial Danish design (Registered Community Design No. 009148265-0001/0002/0003)

Adjustable pedal stops

Adjustable travel settings

All black anodised aluminium base, arms, pedal plates, and CNC machined contrast cut surfaces.

Pedal base with integrated heel rest and RGB LED that can be adjusted, dimmed or turned completely off in the RaceHub software.

Adjustable pedal plates that can be moved along the x- and y-axis

Calibrations made in RaceHub will automatically be saved in our EPROM (Erasable Programmable Read-Only Memory). This results in calibration (pressures, deadlines and more) will be saved for every simulator/game (You need to set 0 and 100% values in the game).

Only one USB connection to the PC from the pedal base, regardless of 2 or 3 pedal utilisation.

Each pedal can be calibrated through the intuitive and easy-to-use RaceHub software.

Pedal upper and lower dead zones can be set through the RaceHub software

All adjustable mechanical features are by default coloured orange

Inhouse-developed electronics with 16-bit resolution and automotive-grade pressure sensor

Optional to purchase smooth sock-friendly pedal plates

Easy to add a clutch pedal to the Throttle & Brake combo

Made in Denmark

Sustainable manufacturing with 100% on-site re-use of waste material

Designed and tested to 1,000,000 activations, which far exceeds any racecar specification

BRAKE SYSTEM
The T.H.O.R.P. (Twin Hydraulic Opposing Rapid Pistons) patent-pending hydraulic brake cylinder gives you the ultimate experience of driving a real racecar.

Die-cast aluminium zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point.

Sustainable manufacturing with 100% on-site re-use of waste material

Automotive-grade pressure sensor

The in-house designed brake cylinder features sleek CNC machined details, adding to the exquisite overall look.

Three interchangeable elastomers for adjustment of hardness combined with an integrated physical stop and an expansion chamber to mimic perfect racecar feel as well as not overloading the elastomer

Manually adjustable initial touch hardness to mimic perfect brake pad to brake disc distance
