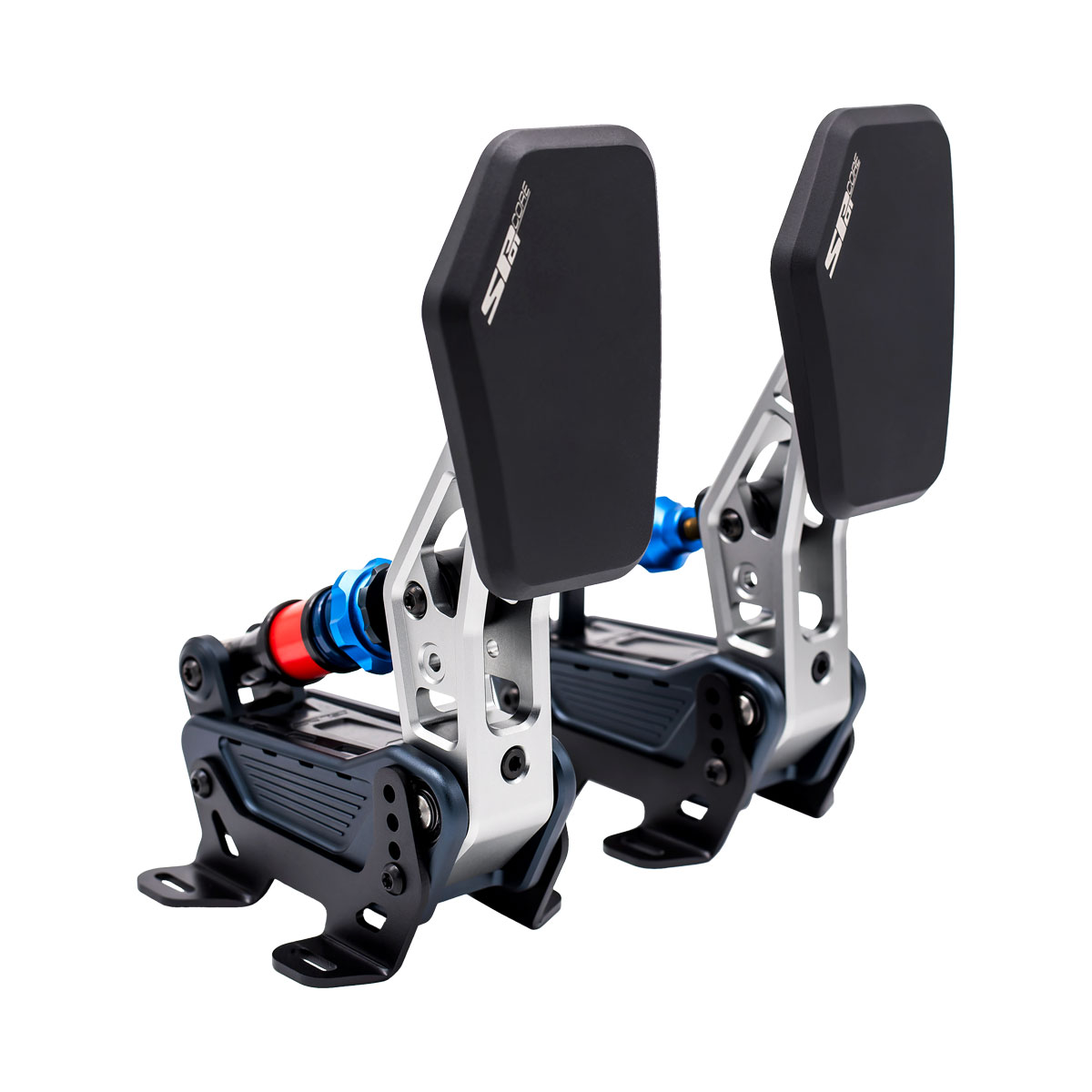

Cube Controls SP01 Core

The SP01 Core is the perfect entry into Cube Controls, offering top-tier quality and design. Built from CNC-machined aerospace aluminium, it delivers a lightweight, durable, and highly responsive experience. Designed for both professionals and enthusiasts, it enhances driving precision while seamlessly integrating with any racing setup.



Precise, customizable, compact, durable, intuitive

The pedal set features a 200 kg load cell with adjustable travel, load, and preload for precise customization. A redesigned brake arm improves load distribution and braking accuracy. Its compact, lightweight design enhances cockpit compatibility, while the integrated PCB and intuitive software ensure ease of use. Includes a 5-year warranty.



Race. Refine. Dominate

Compared to the previous model, the pedal set’s mechanics have been completely redesigned to ensure maximum performance and reliability. Every component has been optimized for precise load distribution and improved braking accuracy, making it more responsive and durable, providing drivers with an enhanced and consistent sim racing experience



Specification

Precision press-fit ball bearings with Seegers
CNC machined aluminium main structure from a single block
Compact design pushing the boundaries of compactness and weight
Optimized FEM design for a cutting edge flex-free structure
Custom brackets with adjustable main pedal body angle in 5° increments
Redesigned mainspring with improved geometry
Easier to mount brackets both in Stainless steel

Throttle

Adjustable pedal throw by a dedicated knob on the main shaft
Easy to reach spring preload adjustment
Precision machined main shaft with high wear resistance plating
Tolerance machined self-lubricating nylon sleeve for the smoothest operation
16 bit resolution hall sensor with improved readings
>USB-C connector for the main control electronics

Brake

Custom lightweight die-cast pad faceplate with textured grip
Fine-tuning spring preload option on the main pedal, and preload ring on the compression elements with counter knob
Precision machined main shaft with high wear resistance plating
Several springs and rubber dampers compression elements available
Self-centering springs and dampers washers
200kg precision load cell with improved directly applied force cinematic
16-bit resolution
