With the CSL Steering Wheel P1 V2, we’ve made a fully featured wheel at the lowest price that doesn’t compromise on performance. It is an ideal starter wheel for the CSL DD.



Multi-Purpose Design

The 300 mm diameter is suitable for many vehicle types, and the lightweight construction retains fine force feedback detail even at low torque settings.



Tactile, Durable

The internal structure of the polymer casing means that the wheel is strong and durable. The rubberised grip provides just the right amount of friction, and is comfortable to use for long sessions, even with sweaty hands.



CSL DD Now With QR2

Bring the race track to your home with exceptional Direct Drive performance in a compact design. Now including QR2, you’ll experience even more precision and detail in the force feedback.

Fanatec Direct-Drive Technology

When the steering wheel is directly mounted to the motor shaft, there’s no belt or gear drive to dilute the force feedback effects. Choose Direct Drive by Fanatec and experience your favourite racing simulations as the developers intended.

Plug & Play

Our strong relationship with game developers means the CSL DD has broad compatibility and consistent behaviour across many popular titles. The Standard Tuning Menu has been simplified, allowing beginners to start quickly without having to worry about settings. The Advanced Tuning Menu remains for enthusiasts.



Pedal To The Metal

The CSL Pedals are solidly built from steel. Precise and durable sensors allow you to stay in control with smooth throttle and brake inputs.

Heavy Steel Construction

The stability of the all-metal design means it is built to last. The stiffer spring on the brake pedal combined with the PU foam damper provides a realistic, progressive feeling.

Magnetic Sensors

Both the throttle and brake axes use precision Hall-effect sensors. By measuring pedal position with magnets, the system is contactless, meaning no wear on the sensor and consistent performance.



Features

CSL Steering Wheel P1 V2:

• Realistic size, suitable for many driving styles (300 mm)
• Rubberised wheel rim with improved ergonomics
• Integrated RevStripe™, which is a combined centre stripe and an engine RPM indicator, using a multi-colour LED
• Three-digit LED display smoothly integrated into the wheel rim below the RevStripe™ allows telemetry data such as speed or gears to be displayed in compatible games or third-party software
• Metal shifter paddles, snap-dome-activated “click” feeling
• 4-way direction pad with push button
• Tuning functions with LED display to adjust settings independent from the game and during gameplay (see description of compatible wheel base/racing wheel for details)
• QR2 Lite Wheel-Side preinstalled

CSL DD QR2:

• Direct-Drive system delivers instant, detailed force feedback
• Linear, consistent performance (5 Nm peak torque)
• Optional Boost Kit 180 (sold separately) unlocks maximum strength (8 Nm peak torque)
• Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness
• Full Fanatec SDK support ensures game compatibility out of the box for all major racing games
• Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
• Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
• High-resolution (contactless) Hall-position-sensor, same as Podium Series
• Steering axis made from carbon fibre-enhanced composite
• Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps
• Rotation: 2520 degrees (electronically limited, adjustable)
• Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data to steering wheels
• QR2 quick release system
• Motorsport-derived quick release
• Tapered shape naturally ensures a tight fit
• Carbon fibre-reinforced polyamide construction
• Exchangeable
• T-nut rail system on sides and bottom for easily adjustable hard-mounting
• Optional table clamp (sold separately), supports 5 to 60 mm table thickness

Ports:

• Power supply
• USB-C to PC / console
• Fanatec DataPort-C
• Shifter 1
• Shifter 2 (Sequential only)
• Pedal
• Handbrake

Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

CSL Pedals:

• Two-pedal set (throttle and brake), upgradeable to three pedals (upgrade kits sold separately)
• All-metal construction (excluding pedal faces). Pedals are made from heavy steel, which helps to prevent the set from sliding on the floor (if not hard-mounted to a rig)
• Optional anodised aluminium pedal plates (CSL Pedals Tuning Kit, sold separately)
• Contactless Hall sensors (12-bit) on both brake and throttle for high precision and durability
• Brake pedal spring is stiffer than throttle pedal spring, PU foam damper adds additional resistance for progressive braking feel
• Upgrade to a three-pedal configuration with Clutch Kit or Load Cell Kit (sold separately)
• CSL Pedals Clutch Kit provides a third pedal for the lowest price
• CSL Pedals Load Cell Kit also provides a third pedal, and upgrades the brake and electronics
• Pedal position can be adjusted sideways along heel rest
• Height-adjustable pedal faces
• Modular design means inverted mounting to a rig is possible
• Vertical rear plates allow pedals to be easily braced against a wall or other vertical surface
• Pearl chrome plating on pedal bases and arms
• Black powder coating on heel rest

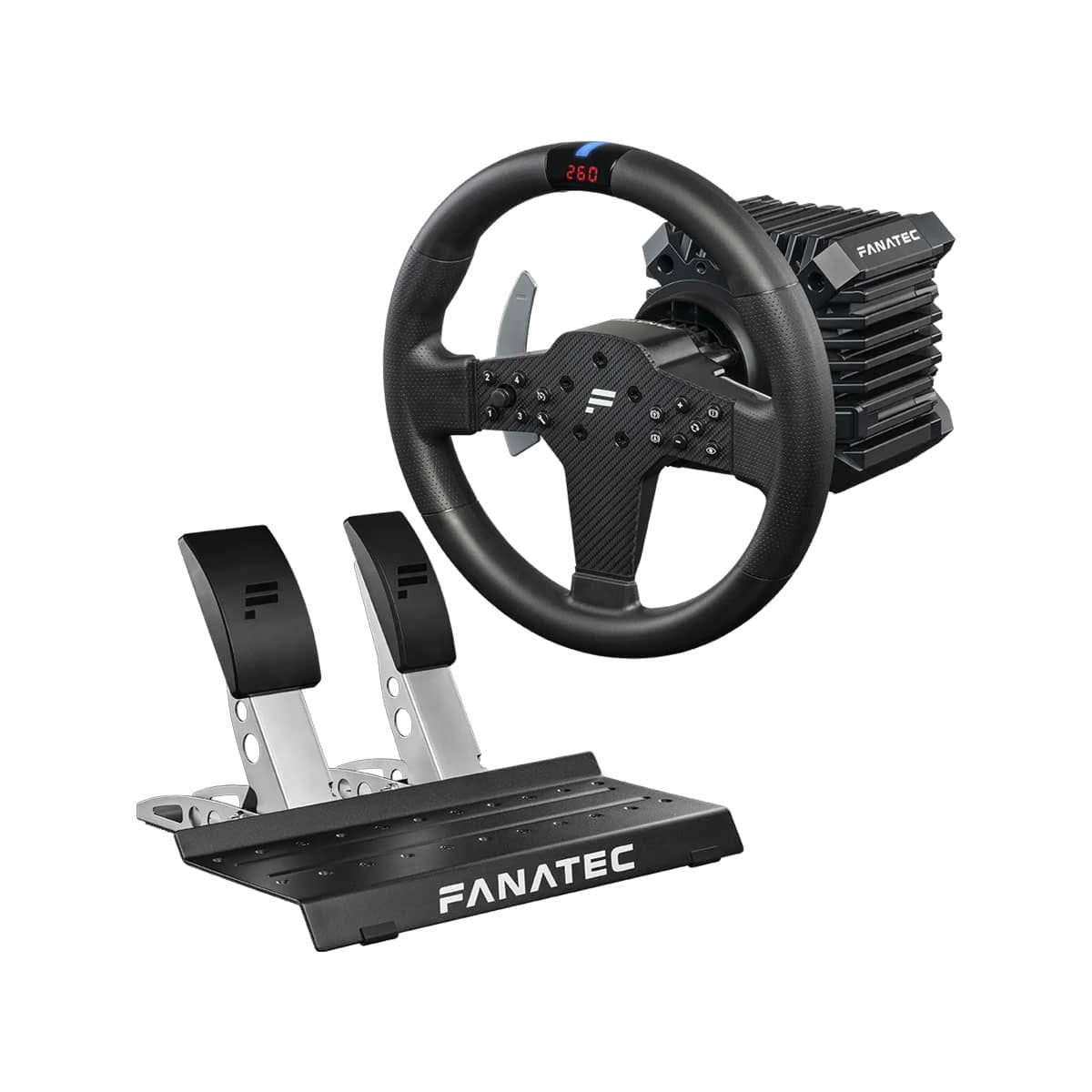

What’s Included

• CSL Steering Wheel P1 V2
• QR2 Lite Wheel-Side (preinstalled)
• CSL DD Wheel Base
• QR2 Lite Base-Side (preinstalled)
• CSL Pedals

Special Notes

Not suitable for children. A Direct Drive Wheel Base is not a toy! The fast movements of the steering wheel and strong torque can be dangerous. Please read the safety instructions.

The QR2 Lite Base-Side (Type-C) included with the CSL DD QR2 is compatible with all versions of the QR2 Wheel-Side (Lite, Regular, Pro) and does not cause any torque restriction, even with the Boost Kit 180.

In order to enable features such as Steering Wheel LEDs in some titles, it may be necessary to switch the CSL DD to Compatibility Mode. This can also help with titles not working in standard PC mode.

Only the standard 90W power supply or the Boost Kit 180 can be used with this Wheel Base. The use of any other power supply will void the Wheel Base warranty, is potentially dangerous and can lead to serious injury or death.
