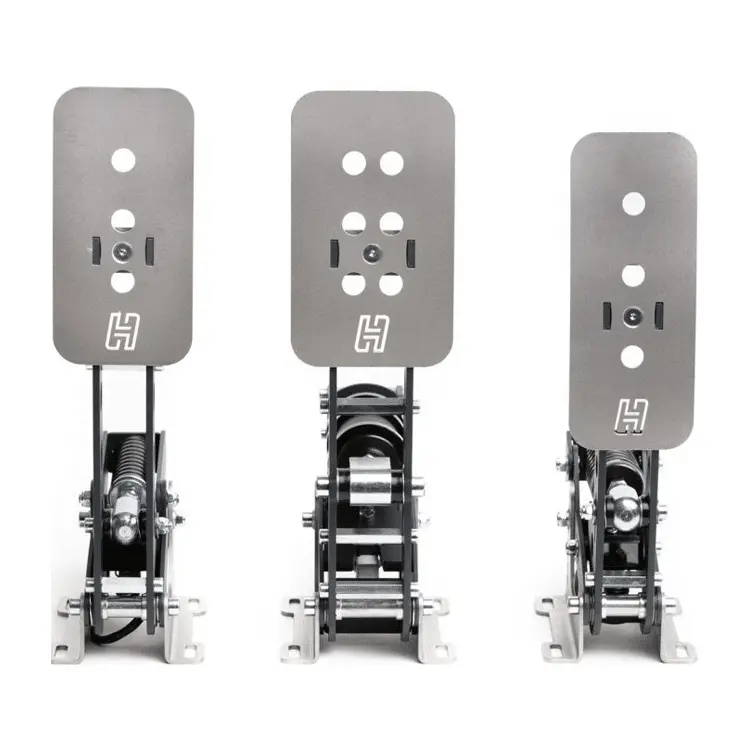

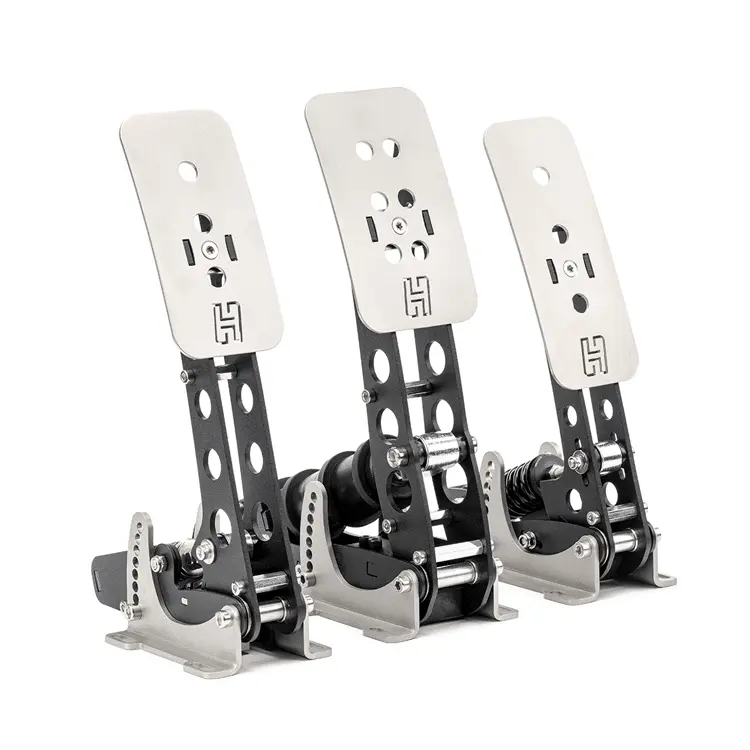

Heusinkveld Sprint Sim Pedals

Heusinkveld Sprint Sim Pedals are a perfect choice for both casual simracers as well as professional eSports drivers. A strong, compact and highly adjustable design with custom electronics and powerful SmartControl software. Fully adjustable pedal geometry and force (120kg load cell with up to 65kg of actual force at the brake pedal plate), limitless configuration options in the software.

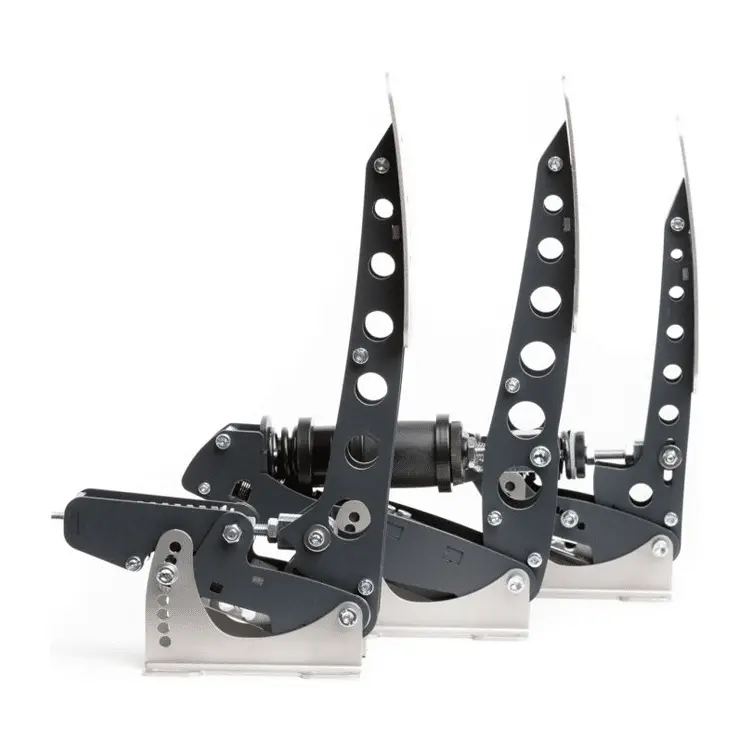

The Sim Pedals Sprint are a strong, compact and highly adjustable design with the main parts made out of CNC precision laser cut steel, intended for your home-use simulator. Mathematical models were made to accurately calculate pedal travel and force curves, predicting with great accuracy how each pedal behaves in different configurations.

The pedals include all new concepts for bearings and pivot points in order to minimize unnecessary play. Automated testing routines have been used to simulate up to 1 million duty cycles.

Durable load cells measure throttle and clutch position and force applied to the brake. Unlike designs with rotary potentiometers, load cells provide true linear output in relation to your pedal output. They are insensitive to dust and dirt and do not wear out, resulting in unmatched accuracy and durability over time.

Custom developed and EMC tested electronics make sure each pedal responds instantly and accurately in your favourite simulator software. The included SmartControl software allows easy configuration of deadzones, brake force and customize (non-linear) pedal output curves.



Heusinkveld Sprint Sim Pedals Components

Throttle

Smooth, accurate and greatly adjustable, the throttle pedal gives you excellent control over any race car. With five pedal travel settings, adjustable pedal force curve, spring preload, pedal angle and pedal height you’ll be able to set up the throttle exactly to your liking.

The graphs below show the effect of the force curve (left) and preload adjustments (right).
Brake
The dual stage brake system consists of an adjustable initial coil spring, simulating the pad to disc gap, and progressive rubber springs. The pedal firmness is adjusted by selecting from 6 different rubber stack heights. The pedal angle and pedal height can also be adjusted.

A 120kg load cell measures up to 65kg (143lbs) of maximum actual brake force, ensuring this brake pedal caters both for simracers who like to apply significant force while braking but also for racers who like much lower operating forces.

The graphs below show the effect of the force curve adjustment.

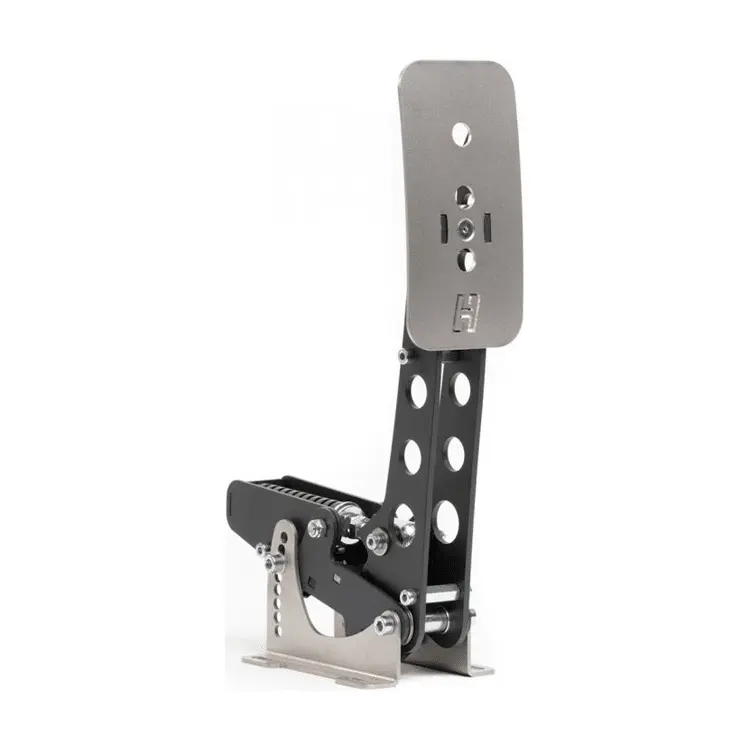

Clutch

The clutch features a regressive spring mechanism to simulate a typical concave clutch curve. Furthermore, the clutch features three pedal force curve settings, adjustable spring preload, pedal angle and pedal height.

The graphs below show the effect of the force curve (left) and preload adjustments (right).



Heusinkveld Sprint Sim Pedals Electronics

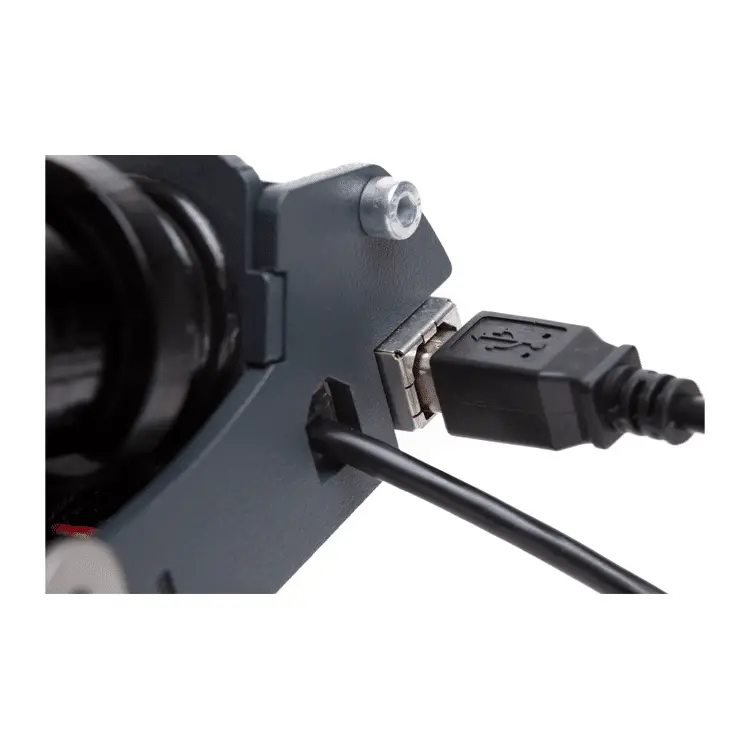

The all new electronics have been integrated in the brake pedal. This allows for a clean setup with a minimum of wire clutter.

The controller board has received a conformal coating in order to shield it from moisture and dust. The product as a whole is CE certified and has been tested to be compliant with all applicable European EMC norms and regulations.



SmartControl Live

The Sim Pedals Sprint come with a powerful configuration tool allowing you to set up your pedals in ways not previously possible: SmartControl. Working together with our own electronics platform, SmartControl allows for instant mapping of (non-linear) pedal output curves, pedal deadzones and brake pedal force.

These adjustments can be made without having to recalibrate the pedals (including iRacing). All settings can be saved into profiles, which can be loaded again in a few mouse clicks.

Brand-new Heusinkveld SmartControl Live is an innovative software tool to adjust your controller settings to your own preferences while driving. Activate SmartControl profiles for different cars and classes at the touch of a button, without having to leave the simulator software.
