Heusinkveld Sim Pedals Ultimate+ Baseplate

When operating Heusinkveld Sim Pedals Ultimate+ near their maximum force capability, they need a very sturdy mount to your rig. If you want to mount your pedals to a baseplate first instead of mounting them individually, our Heusinkveld Sim Pedals Ultimate+ Baseplate is your product of choice.

With the Sim Pedals Ultimate+ being able to cope with the forces as experienced in real life racing cars, a sturdy mount to your simulator rig is an absolute must. If you do not want mount the pedals directly to your rig but want to put them on a baseplate first, we offer an optional rigid mounting solution. These baseplates are designed to show absolutely zero flex under load, while maintaining flexibility when it comes to positioning individual pedals.



Engineering

With the Sim Pedals Ultimate+ being able to cope with up to 140kg of force, standard rigs often show excessive flex under these loads. This baseplate helps to create a rigid mounting platform for your Sim Pedals Ultimate (please note that the Sim Pedals Sprint have their own baseplate).

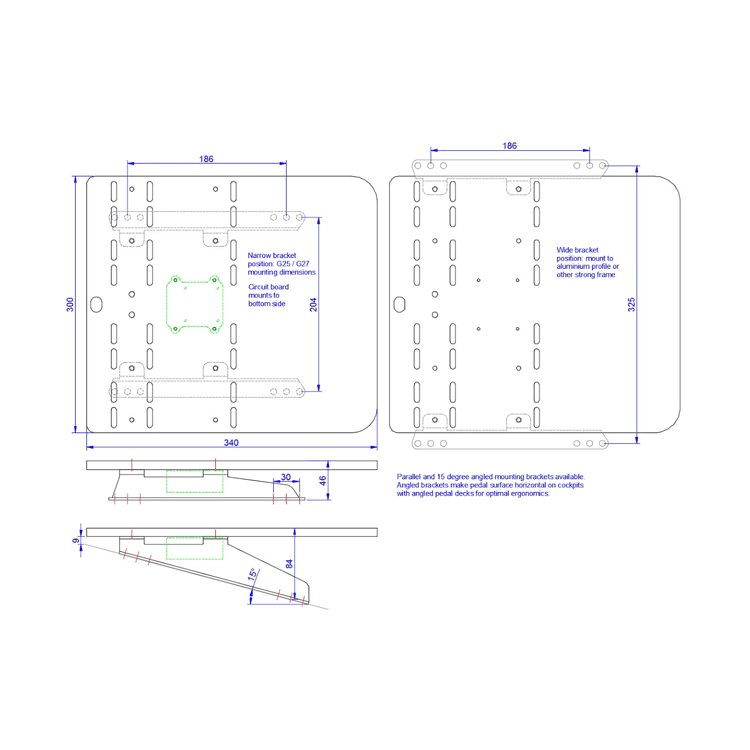

The baseplate assembly consists of multiple elements: The main baseplate on which you mount the pedals, as well as two brackets which create ground clearance for the pedal bolts and nuts and provide mounting space for the pedal controller. The main baseplate element is 10mm thick and will show zero flex under maximum load.

The colour of the baseplate is black (fine structured powder coat).



Mounting Options

Depending on your rig, you have the option to use the straight/parallel brackets or angled brackets. Both bracket types are supplied with every baseplate. The angled brackets are specifically designed for rigs which come with a proprietary pedal mounting plate which is inclined towards the seat.

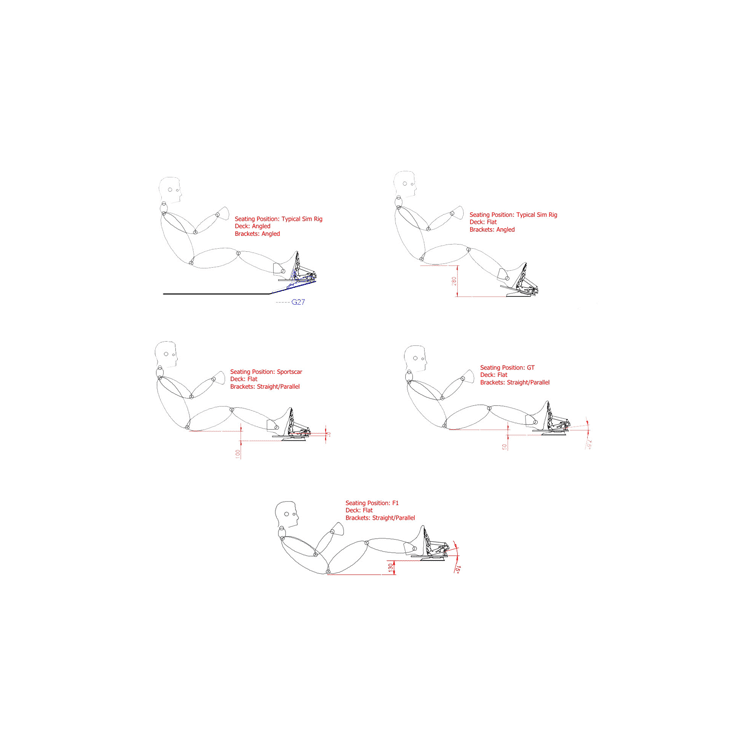

Our angled brackets tilt the Sim Pedals Ultimate Baseplate by 15 degrees. This offsets the default plate inclination from your rig creating a horizontal mounting platform for your Sim Pedals. If your rig has an angled pedal deck, this will also elevate the position of the pedals, enhancing ergonomics and resulting in a more realistic driving position where the pedal box and seat are at a more level position relative to each other. The images show both types of brackets, as well as a schematic showing various seating positions and the appropriate bracket type.

Both sets of brackets are compatible with G25/G27 mounting holes, allowing for easy installation on many available simulator rigs. Alternatively, the brackets can also be mounted to the side of the baseplate in a wider layout.

Every baseplate comes with a set of bolts and nuts to attach the pedals to the baseplate and mount the baseplate to your rig. Next to mounting holes for your pedals, every baseplate also features slots to position the Sim Pedals USB-controller.



Compatibility

The Heusinkveld Sim Pedals Ultimate Baseplate is suitable for our Sim Pedals Ultimate+. It can also be used for the Sim Pedals Ultimate (non + version) and the Sim Pedals Pro.

The Sim Pedals Ultimate+ Baseplate is NOT compatible with the Sim Pedals Sprint or Sim Pedals Racecentre. For the Sim Pedals Sprint baseplate, please click here.
