QS-210 – 3DOF MOTION SYSTEM

RACING TEAM EXPERIENCES BROUGHT TO YOUR HOME

The Qubic QS-210 3DoF is a high-end motion system designed to deliver an ultra-realistic sim racing experience. It incorporates
advanced haptic feedback technology that provides precise force feedback, enhancing the sense of driving immersion. The
system comes with dedicated software for customization and frequent updates, making it a favourite among sim racing
enthusiasts.

3DOF QS-210 MOTION SYSTEM HIGHLIGHTS

• Maximum velocity: 400 mm/s per actuator – keeps pace with the telemetry signal.
• Maximum acceleration: 0.6 G – incredible realism of car acceleration for winning every race.
• Actuator stroke: 60 mm | 2.36 in – tailored to work with GT and WRC vehicles.
• Latency: <8 ms – immediate responsiveness of the system, no delays, no VR/motion sickness.
• Maximum control frequency: 1000 Hz – 1000 times per second for smooth and quick actuator movement.
• Vibration frequency range: 0-100 Hz – feel the vibration of the engine and the grind of the individual wheels.



3DOF QS-210 MOTION SYSTEM KEY FEATURES

• Home package – industrial grade performance brought to your home.
• Maintenance-free and extremely quiet operation – plug and play motion system, easy to use at your house.
• One common environment – all in one Qubic Manager application to control the platform and 3rd party
accessories.
• VR HeadWay technology support motion compensation of unwanted cockpit movoments.
• Over 80+ integrated and supported racing games, included GT, F1 and Rally titles.
• Proudly made in EU: Engineered, Designed and Manufactured in Poland.

General specification of QS-210 3DoF motion system:
Under the link: QS-210 product card

EVEN THE MOST ADVANCED HARDWARE IS NOTHING WITHOUT A GOOD SOFTWARE

Qubic Manager by Motion Systems company is professional and specialized software for the platform and is “click and
play” compatible with all major racing titles on PC and constantly updated to support new applications as they are
released. Gives the user possibilities of motion adjustments, motion post-processing, extensive diagnostic or easy and fast
use of predefined profiles. The Qubic Manager is a powerful engine, yet being simple to use. You can adjust levels of
motion, the intensity of bumps, roll and pitch and more with a click of a button. Qubic Manager software license is free-of-
charge.

QUBIC MANAGER KEY FEATURES

• Delivers world-class advanced motion cueing algorithms with integrated “washout filters” to reflect the situation from
virtual environment, closing the gap between simulation and reality.
• Most popular, already integrated and supported games for racing simulation applications.
• Included VR Headway technology eliminates platform movements from the VR tracking system causing your experience
to be more immersive, authentic and has huge impact on VR sickness compensation.
• The motor control algorithms analyzed and preprocessed directly by the driver, so it is possible to change parameters with
basically zero cost (time). Drivers parse the incoming command as soon as the command arrives. It also allows to
implemented different types of vibrations (per actuator) on driver level.
• Equipped with Tactile Audio Based Feedback System that can use tactile trans-ducers connected to sound card to
generate additional effects on your cockpit.
• Thanks to having full control of the technology Motion Systems company can change control algorithm source code,
introduce new parameters and features without waiting for 3rd party vendors. Simple software update can introduce new
features to the customers.
• Motion SDK (FSMI or FSDI) for software developers is also available as an extra option. That powerful interface allows to
add a motion platforms support to any application or game.

What is included in the package

QS-210 3DoF Motion System comes in 3 boxes (2 x QS-210 + 1 x QS-MC6)

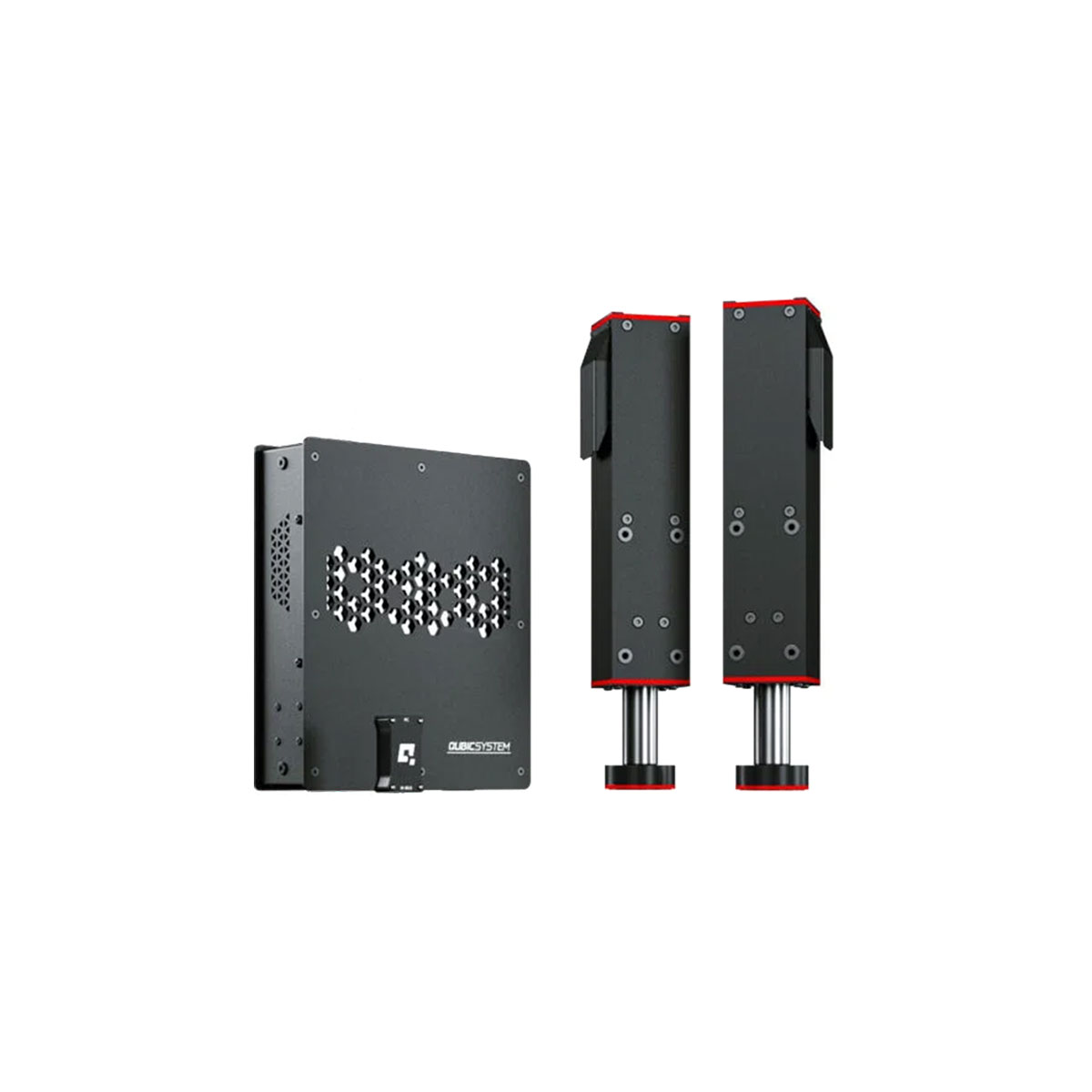

QS-210 package includes:

• 2 x Linear actuators with stabilization plates
• 1 x Power cabinet (control module)
• 1 x Motion lock cable (up-link/down-link) – 2 m long
• 1x Power cable – 1 pcs of 1,8m long cable for EU market / or 1 pcs of 2m long cable for USA market1
• 1 x User manual
QS-MC6 motion controller set (separate purchase) to control up QS-210 3DoF Motion System:
• 1x M10 USB controller
• 1x Motion lock with additional 2 m long cable
• 1x M-BUS terminator
• 1x USB cable – 0,5 m long cable (USB micro B)
• 1x CAT.5E patch cord cable – 2 m long

Download links

• Qubic Manager software license:
Available on main page: https://qubicsystem.com/download/
• User manual:
Available on main page: https://qubicsystem.com/um/
