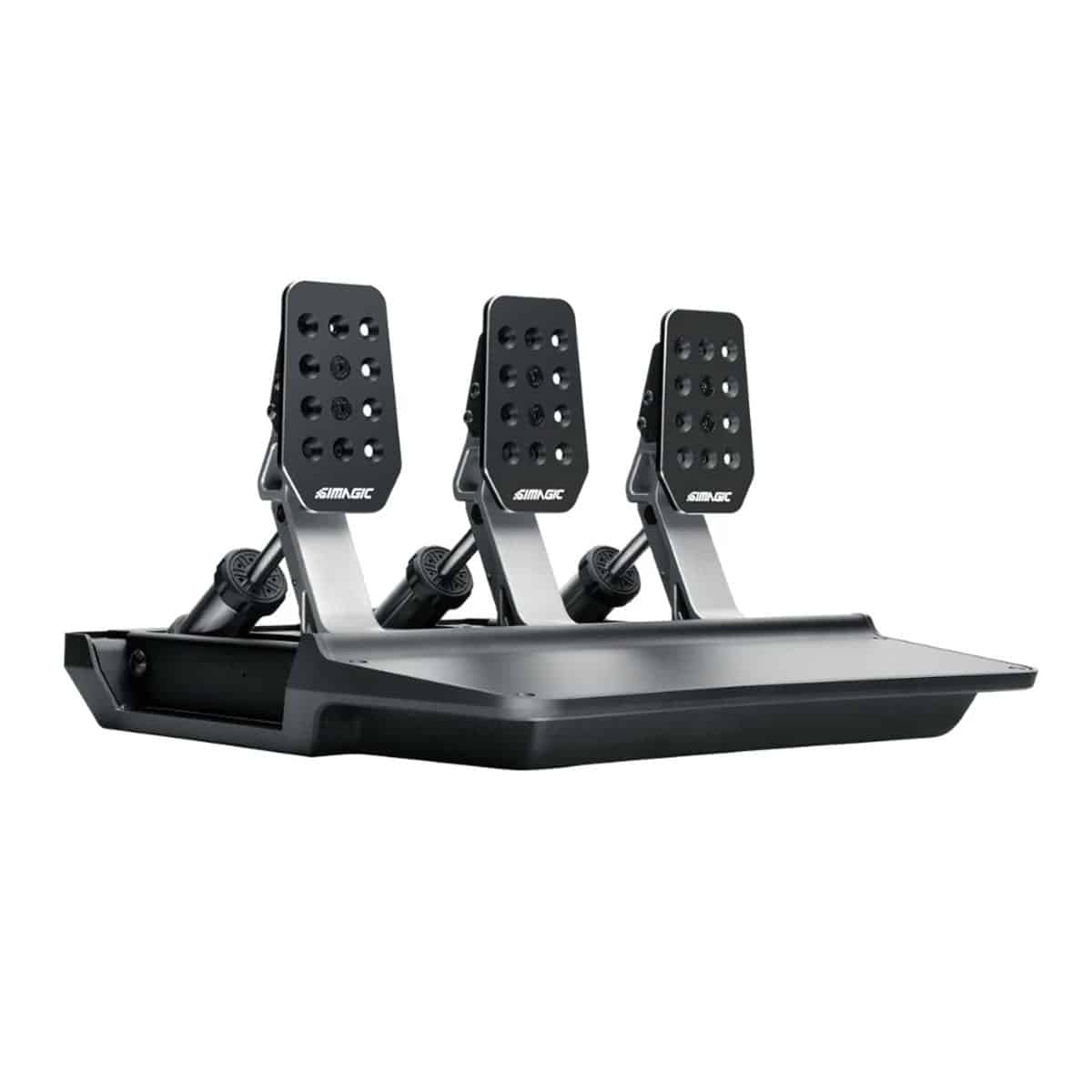

SIMAGIC P500 Pedals

Day one kit, backed by pro-level design. Simagic P500 Pedals are equipped with a 100kg loadcell and a Hall angle sensor for the throttle and clutch. Easily Ergonomic wider support for adjustments.



Dual Sensor Power

Equipped with a 100kg loadcell and a Hall angle sensor.

Hall angle sensor suitable for road cars with a longer pedal travel

Loadcell for race cars with a shorter brake travel for better immersion

Smooth and precise input, no matter the track

Hall angle sensors for throttle and clutch.

A driving sensation that feels consistent and great.



Easily Ergonomic

Wider support for adjustments that other pedals on the market, ensuring you get the perfect angle no matter your setup.

Pedals Lateral Adjustment – Multiple screw hole positions provide spacing adjustments for the Throttle, Brake, and Clutch

Pedal Face Displacement Adjustment – Ability to adapt to different foot sizes

Pedal Plate Angle Adjustment – Ability to adapt to different seating positions



Dial In To Perfection

Comes with different springs and elastomers. Customize to your liking! Freely adjust the force to ensure your P500’s fit just right.



Automotive-Grade Integrated Die-Cast Aluminium Alloy Process

Utilizing Automotive-Grade Integrated die-cast aluminium alloy
and high-precision CNC machining.

The P500’s use a smart, refreshed design that holds firm and durable, all while remaining lightweight.

The pedal plates are crafted with high-precision CNC machining, giving a refined texture and clear pedal feel.



Technical Specification

Resolution: 12Bit(4096)High accuracy sensor

USB Connection: PC or SIMAGIC Wheelbase

Adjustable Spring Force Level: Throttle, Brake

Hall Angle Sensor/Loadcell Sensor: (Throttle-Hall angle sensor) / (Brake-Hall angle sensor/Loadcell sensor)

Loadcell Sensor: 100KG

Floor Mounting: Supported

Pedal Plate: High-Precision CNC

Angle/Position Adjustment: Supported

Adjustable Linearity: Supported

Adjustable Brake Force: Supported

Pedal Control Box: Included

Building Material: High-Precision CNC, Aluminium Alloy

Dimensions (Length x Width x Height): 330.4mm x 355.1mm x 209.3mm

Net Weight: 3.8kg

Accessories: Pedal Springs, Pedal Control Box, Cable, 3M Stickers, USB Cable, Installation Kit, Wall Support Bracket
