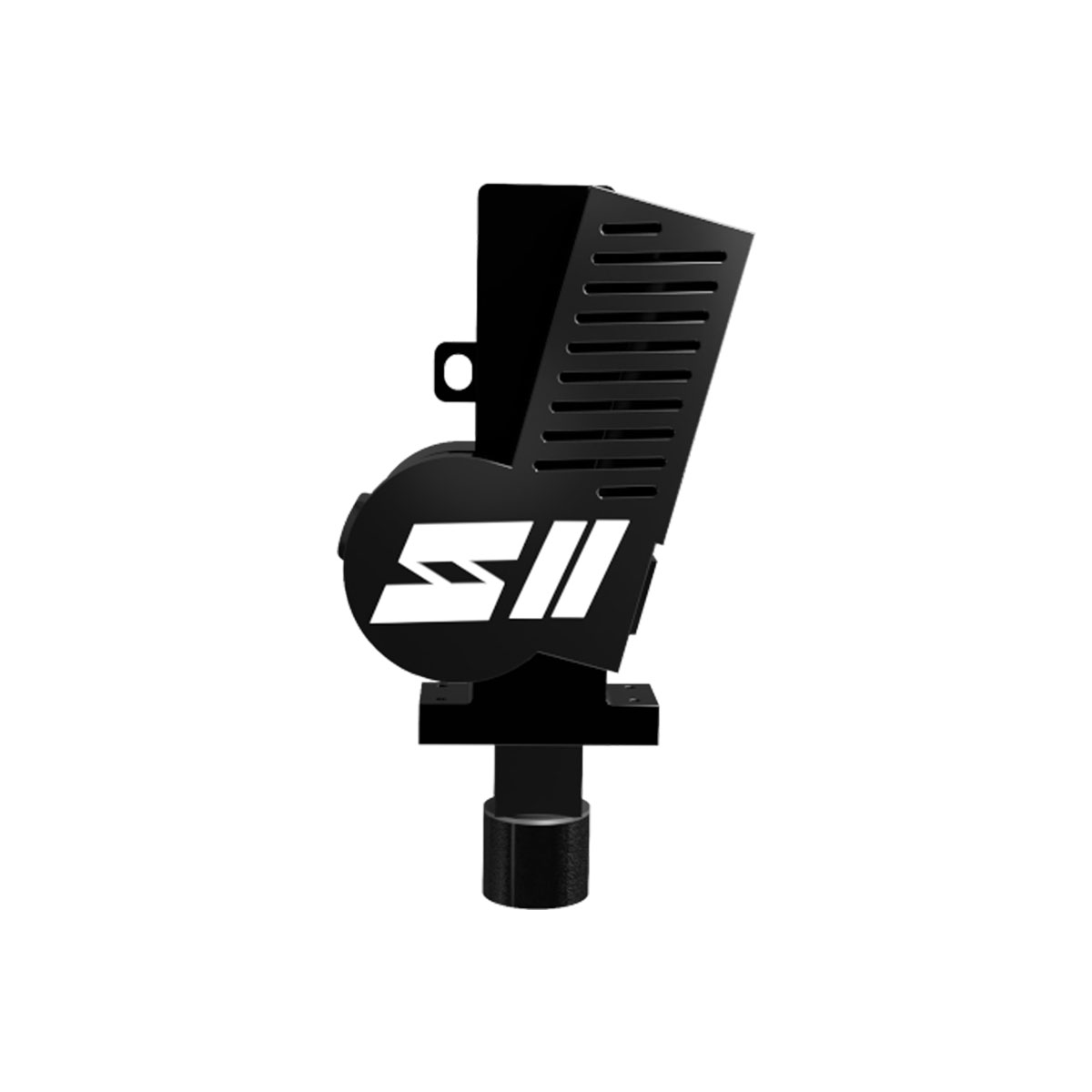

SIMRIG SR2

The SIMRIG SR2 is our most powerful motion system. Equipped with industrial-grade motors, a redesigned ECU, and a beefier power supply, the SIMRIG SR2 is professional-grade equipment.

Your number one request was increased load capacity. We listened. The SIMRIG SR2 can actuate a total load of 225 kg. This is 50 kg more than the previous version.

Though powerful and accurate, its footprint is small. The actuators mount directly to your rig. The ECU easily fits under your seat. The power supply can be tucked away next to your computer. The SIMRIG SR2 will enhance your rig without increasing its size too much.

SIMRIG Control Center accompanies the motion system. This software controls the motion system by interpreting the position and acceleration of the simulated vehicle. It supports all major simulation titles.

Installation is plug-and-play. Attach the actuators, ECU, power supply, and emergency stop. Connect a few cables. Install the software. Then you are ready!



PERFORMANCE

The SIMRIG SR2 is powered by a 1000 W power supply — more than enough power to react quickly to motion commands. This power supply attaches to your wall socket using a standard power cord.

The system latency is negligible at only seven milliseconds. We have optimized the software to make sure motion queues are on-time every time.

The maximum load is set to 225 kg for best performance and longevity. The maximum load includes the rig, the driver, peripherals, and additional weight actuated by the SIMRIG SR2 motion system. This is 50 kg more than the SIMRIG SR1.

Even with heavy 160×40 mm rigs (that weigh 65 kg), the SIMRIG SR2 can accommodate a driver, a seat, and peripherals that weigh up to 160 kg in total.



MOUNTING

The SIMRIG SR2 is compatible with aluminium rigs built using 80×40, 120×40, and 160×40 mm aluminium extrusions. Other sizes are available on request.

Four 20×20 mm aluminium profiles and four plastic brackets are required to attach the SIMRIG SR2 to an aluminium rig. These are included.

The four 20×20 mm aluminium profiles are mounted in pairs. Two at the front of the rig and two at the back. Each pair holds two SIMRIG SR2 actuators. See the documentation for more details.

The plastic brackets are designed to attach to either 80×40, 120×40, or 160×40 mm aluminium profiles. These profiles differ in height and therefore require a matching bracket. Brackets for these profiles are included in the box.

Simrig SR2 will mount to all Sim-lab Cockpits.

Simrig SR2 COMPATIBILITY

Minimum System Requirements
Operating System
Windows 10 (64-bit)
processor modern Intel i5 or equivalent

Runtime
.NET 4.6.1 and Visual C++ Redistributable 2017

Supported Simulators

These simulators are currently supported, with more on the way. See the complete list in the documentation.

American Truck Simulator

Assetto Corsa

Assetto Corsa Competizione

Automobilista

Automobilista 2

BeamNG.drive

DiRT 4

DiRT Rally

DiRT Rally 2.0

Euro Truck Simulator 2

Digital Combat Simulator (DCS)

F1 2017

F1 2018

F1 2019

F1 2020

F1 2021

Forza Horizon 4

Forza Horizon 5

Forza Motorsport 7

GRID 2019

GT Legends

GTR2

iRacing

KartKraft

Live for Speed

Microsoft Flight Simulator 2020

NoLimits 2

Project CARS

Project CARS 2

Project CARS 3

RACE 07

Race Room Racing Experience

Race

rFactor2

Richard Burns Rally

WRC 7

WRC 8

WRC 9

WRC 10



Simrig SR2 TECHNICAL SPECIFICATION

Max load 1* – 225 kg

Travel – 70 mm

Speed – 100 mm/s (at max load)

Accuracy – 0.1 mm

Latency – 7 ms

Power 2* – 1000 W

Interface – USB 2.0 (Mini-B)

Operating system – Windows 10 (64-bit)

Mounting 3* – Aluminium rig 40×40, 80×40, 120×40, 160×40 mm
(80×40 profiles are sometimes called 80×20 in United States)

Cooling 4* – Automatic fan emergency stop



Package dimensions – 74 cm x 58 cm x 19 cm

package weight – 22
