Simucube Active Pedal Pro

---

INTRODUCING THE SIMUCUBE ACTIVE PEDAL PRO

The Simucube ActivePedal Pro is the streamlined alternative to the Simucube ActivePedal Ultimate — the world’s first digitally adjustable Force Feedback sim racing
pedal with full motor control. Engineered for sim racers seeking competitive and realistic pedals at a more accessible price.

The Simucube ActivePedal Pro has been mechanically streamlined to provide the same consistent feel and feedback as the Simucube ActivePedal Ultimate. It offers endless adjustments through the Simucube Tuner software and allows for switching between different race car pedal profiles with a single click. All these features loved by ActivePedal users are now available at a more accessible price point, all while maintaining Simucube’s renowned quality standards.

What Do You Need To Make The ActivePedal Pro Function?

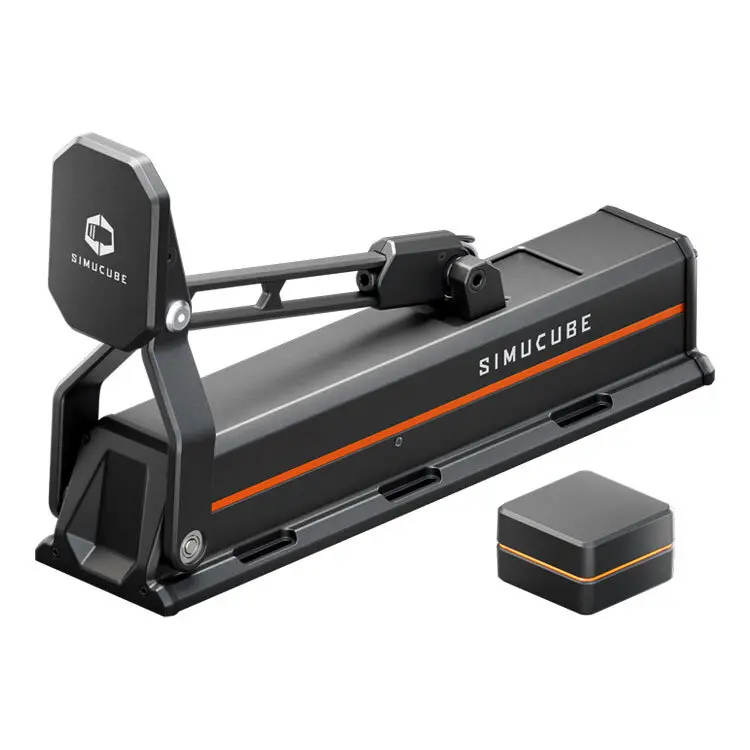

You will need the ActivePedal Pro, the Simucube Link Hub & the Tuner software. If you want to use two or more ActivePedal Pro’s together, you will also need an ethernet switch.

Daisy Chain

The ActivePedal Pro does not support daisy chaining. Each ActivePedal Pro comes with a dedicated power supply. The ActivePedal Ultimate can power the ActivePedal Pro via daisy chain.

Hardware Compatibility

The ActivePedal Pro is useable out of the box with:

• Simucube ActivePedal Ultimate
• Simucube Throttle
• Simucube ActivePedal Baseplate
• Simucube Heusinkveld to ActivePedal Adapters

Software & Game Compatibility / Features At Launch

• ActivePedal Pro uses the Tuner software to adjust pedal feel and haptics feedback, Windows 10 64 bit and Windows 11 64 bit are officially supported.
• A  list of all supported simulator games can be found here
• Simhub compatibility? – No.
• Features and effects for the ActivePedal Pro are the same as for the Simucube ActivePedal Ultimate.

Specs

• Maximum pedal force (high force mode / medium force mode) 110 kg
• Maximum pedal travel (high force mode / medium force mode) 74 mm
• Pedal height adjustment 22 mm
• Pedal offset adjustment No adjustment
• Pedal angle adjustments 18°
• Product Dimensions (W×H×D) – 100 × 255 × 418 mm – (4” × 10” × 16”)
• Mounting hole pattern 6 x M5 slots
• Product weight exl. package, PSU and accessories 5.8 kg
• Extensions support Two passive load cell pedal inputs
• Warranty 3 years



---

Are you looking for a brake pedal for your Sim Racing set-up? Do you want a pedal with an integrated force feedback system? If so, you are in the right place! The Simucube Active Pedal is a fully customisable, telemetry-enhanced sim racing pedal.

Based on simulator telemetry data, the race is given an entirely new dimension with limitless adjustability, repeatability, and force feedback effects. The Simucube ActivePedal may be adjusted to whatever you wish, and once you find your ideal setting, the feeling won’t change again.

Simucube Active Pedal functions as a clutch, brake, and throttle. It is intended to be the final pedal a competitive sim racer uses. With accurate physical pedal profiles, it will become the first and only pedal you will turn to when you need one. Simucube active pedals are a feat of pure genius.
